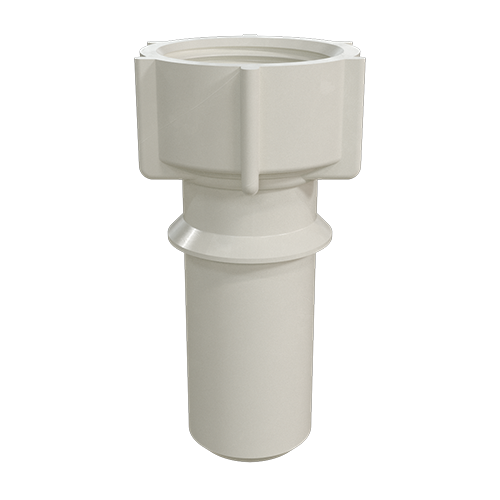

Inline LoFlo

Flow Regulation Where External Access Isn’t Possible

The Inline LoFlo valve is a robust solution for regulating water flow and preventing backflow in unmetered properties.

Designed for installation directly into the main water supply pipe, typically after the main stop tap, the Inline LoFlo provides reliable backflow protection up to fluid category 2. Its compact design allows for efficient installation with minimal disruption, making it ideal for applications in park homes, caravan sites, and other unmetered properties.
Size: 28 mm long when installed, 15mm bore Connections: Any standard plumbing fitting. Pressure rating: Certified to 10 bar. Burst pressure 50 bar. Extrapolated life span: 15 to 25 years. Insulation: Not applicable.

KIWA Certified logo

Our Inline LoFlo is KIWA certified.

Installation Guide

Certification

Legal Notice

Specification

Features & benefits

Direct Pipe Installation with BSP Threads

The Inline LoFlo valve is designed to be installed directly into the main water supply pipe, with BSP threads for secure, leak-free connections. It can be positioned just after the main stop tap or water meter.

Flow Regulation to Industry Standards

The Inline LoFlo regulates water flow to a constant level above the minimum flow required by UK water industry standards (typically 9.5L/min), reducing the risk of excess water usage.

Integrated Backflow Protection (Fluid Category 2 Compliance)

The Inline LoFlo is engineered to provide backflow protection up to fluid category 2, preventing the contamination of potable water systems from water supply disruptions or reverse flow

Reliable, Secure Connection

BSP-threaded connections ensure a tight, leak-free fit, providing long-term reliability and reducing the need for frequent maintenance or adjustments.

Optimised Water Usage and Cost Savings

By maintaining an appropriate flow rate, the Inline LoFlo ensures water conservation and helps reduce overall water consumption, leading to lower bills and better resource management.

Enhanced Water Quality and Safety

The valve's backflow prevention feature safeguards the water supply from potential contamination, ensuring compliance with industry regulations and protecting public health from hazardous backflow events.
